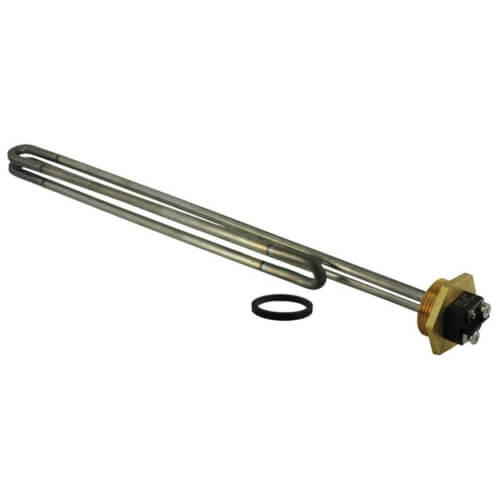

3800W Titanium Element (240V), SP210197
● In Stock

3800W Titanium Element (240V), SP210197

3800W Titanium Element (240V) Watt Density Classification: LWD Input Voltage (V): 240 Wattage at 240V (W): 3800 Watt Density at 240V (W/sq. in. ): 80 Cold Resistance (ohms): 15.40 Outer Sheath Material: Titanium Resistored: No Configuration: Foldback Element Diameter (in.): .316 Element Length - Flange to Tip (in.): 14.00 Mounting Type: Threaded Actual Thread Size - Outside Diameter (in.): 1-1/2 Nominal Thread Size - (in.): 1-1/2 Threads per Inch: 12 Thread Type Series Designation: UNF Hex Head Size - Across Flats (in.): 1-7/8

Hubzone SKU SP210197
Manufacturer Rheem
Manufacturer Part Number SP210197
UNSPSC Code
40141700 ⓘ
NAICS Code
N/A ⓘ
Unit of Measure N/A
Availability ● In Stock
Lead Time Ships in 1–2 business days
Status ● Active

Your Price

$0.00/ PR

Contract Pricing

Product Overview

3800W Titanium Element (240V) Watt Density Classification: LWD Input Voltage (V): 240 Wattage at 240V (W): 3800 Watt Density at 240V (W/sq. in. ): 80 Cold Resistance (ohms): 15.40 Outer Sheath Material: Titanium Resistored: No Configuration: Foldback Element Diameter (in.): .316 Element Length - Flange to Tip (in.): 14.00 Mounting Type: Threaded Actual Thread Size - Outside Diameter (in.): 1-1/2 Nominal Thread Size - (in.): 1-1/2 Threads per Inch: 12 Thread Type Series Designation: UNF Hex Head Size - Across Flats (in.): 1-7/8

Full Specifications

Procurement Details

UNSPSC Code 40141700
NAICS Code N/A

Documents
