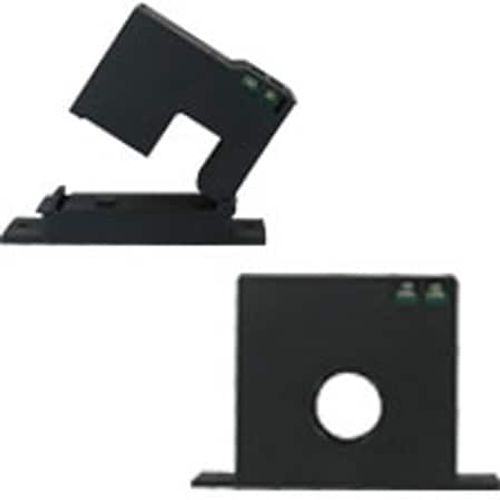

Hawkeye Adjustable Solid Core Current Switch w/ 24 VAC/VDC SPST Relay, 1 - 135A

The Hawkeye relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two Features: Combined relay and status - combines command relay and fan/pump status sensor in a single, easy-to-install unit Fan and pump status - detect belt loss and motor failure ideal for fan and pump status Polarity insensitive status outputs - fast and easy installation Two outputs - feature a SPDT command relay control two outputs with a single relay Easy setup - relay and status LEDs Induced from monitored conductor sensor power Specifications: Application: Building Automation Systems Current Measurement Range: 1 - 135 A Current Sensor type: Current Switch, AC Electrical Wiring Size: 24 - 14 AWG (0.2 - 2.1 mm²) Measurement Type: AC Current Model: H735 Monitored Frequency Range: 50 - 60 Hz Monitored Wire Size: 0.7" (18 mm) Mounting: Solid Core Operating Humidity: 10 - 90% RH, non-condensing Operating Temperature: 5 - 140 °F (-15 - 60 °C) Output Specifications: N.O. 1 A @ 30 VAC/DC Outputs: Switch output | Relay Product Certification: UL Product Type: Sensor Range: HX35 Series Relay Coil Voltage: 24 VAC/DC Relay Construction: Mechanical Relay Contact Ratings: Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive: 3 A @ 250 VAC | Inductive: 3 A @ 30 VDC Relay Poles/Throw: SPST Setpoint : Adjustable Warranty: 5 years
