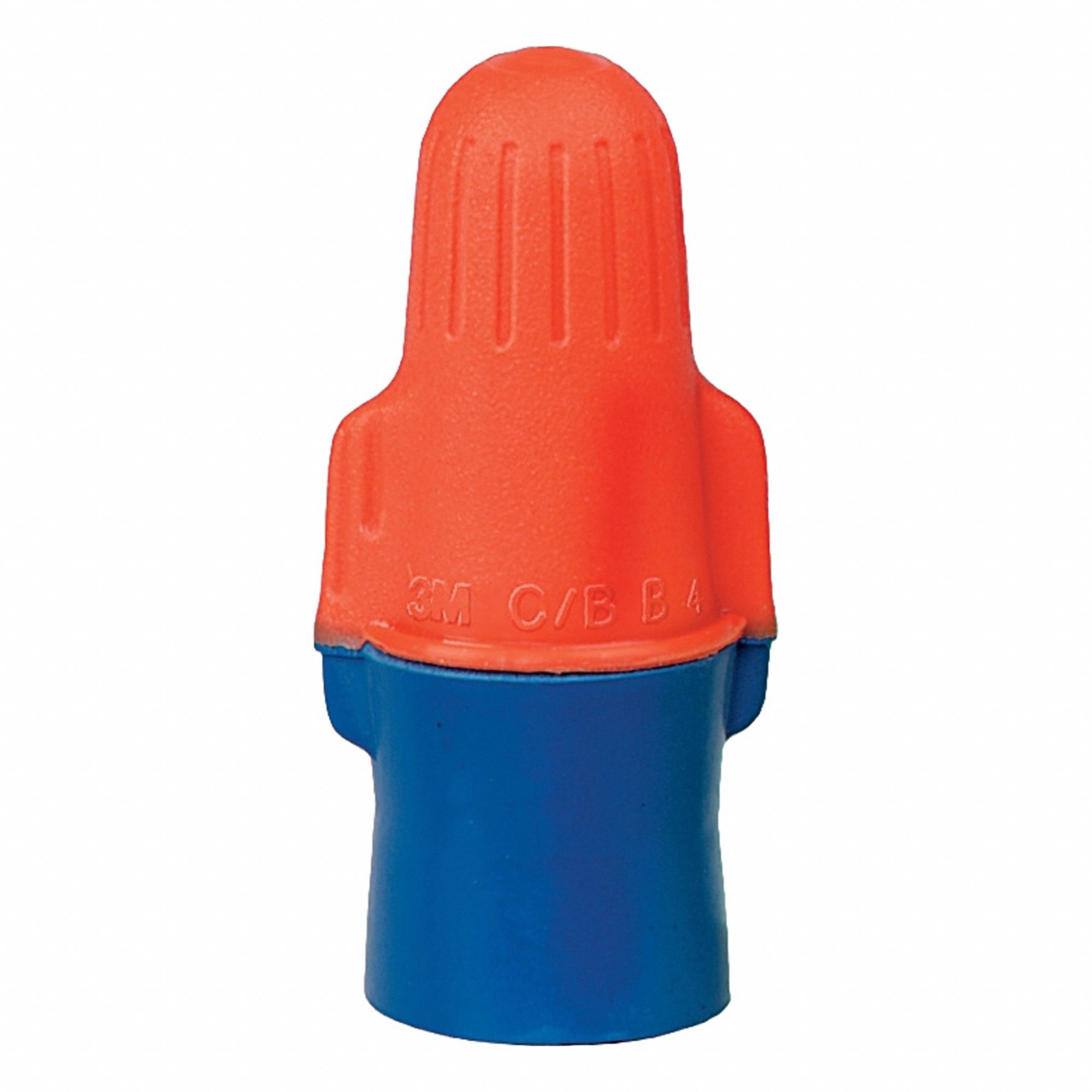

TwistOnWireConnector Org 600V PK100
● In Stock

TwistOnWireConnector Org 600V PK100

Twist-On Wire Connectors Color Orange For Conductor Material Copper Maximum Operating Temperature 221 Degrees F Maximum Voltage 600 V Minimum Wire Combination (5) 22 AWG Maximum Wire Combination (2) 14 AWG with (3) 20 AWG Contact Material Steel Maximum Conductors 7 Standards UL Listed Wire Connector Style Standard Compatible with Product Type Insulating Wire Insulation Material Vinyl Maximum Single Wire Size 14 AWG Minimum Single Wire Size 18 AWG Overall Height 0.86 in

Hubzone SKU 2DRP1
Manufacturer 3M
Manufacturer Part Number H31POUCH
UNSPSC Code
39121409 ⓘ
NAICS Code
N/A ⓘ
Unit of Measure PK
Availability ● In Stock
Lead Time Ships in 1–2 business days
Status ● Active

Your Price

$0.00/ PR

Contract Pricing

Product Overview

Twist-On Wire Connectors Color Orange For Conductor Material Copper Maximum Operating Temperature 221 Degrees F Maximum Voltage 600 V Minimum Wire Combination (5) 22 AWG Maximum Wire Combination (2) 14 AWG with (3) 20 AWG Contact Material Steel Maximum Conductors 7 Standards UL Listed Wire Connector Style Standard Compatible with Product Type Insulating Wire Insulation Material Vinyl Maximum Single Wire Size 14 AWG Minimum Single Wire Size 18 AWG Overall Height 0.86 in

Full Specifications

Procurement Details

UNSPSC Code 39121409
NAICS Code N/A

Documents
