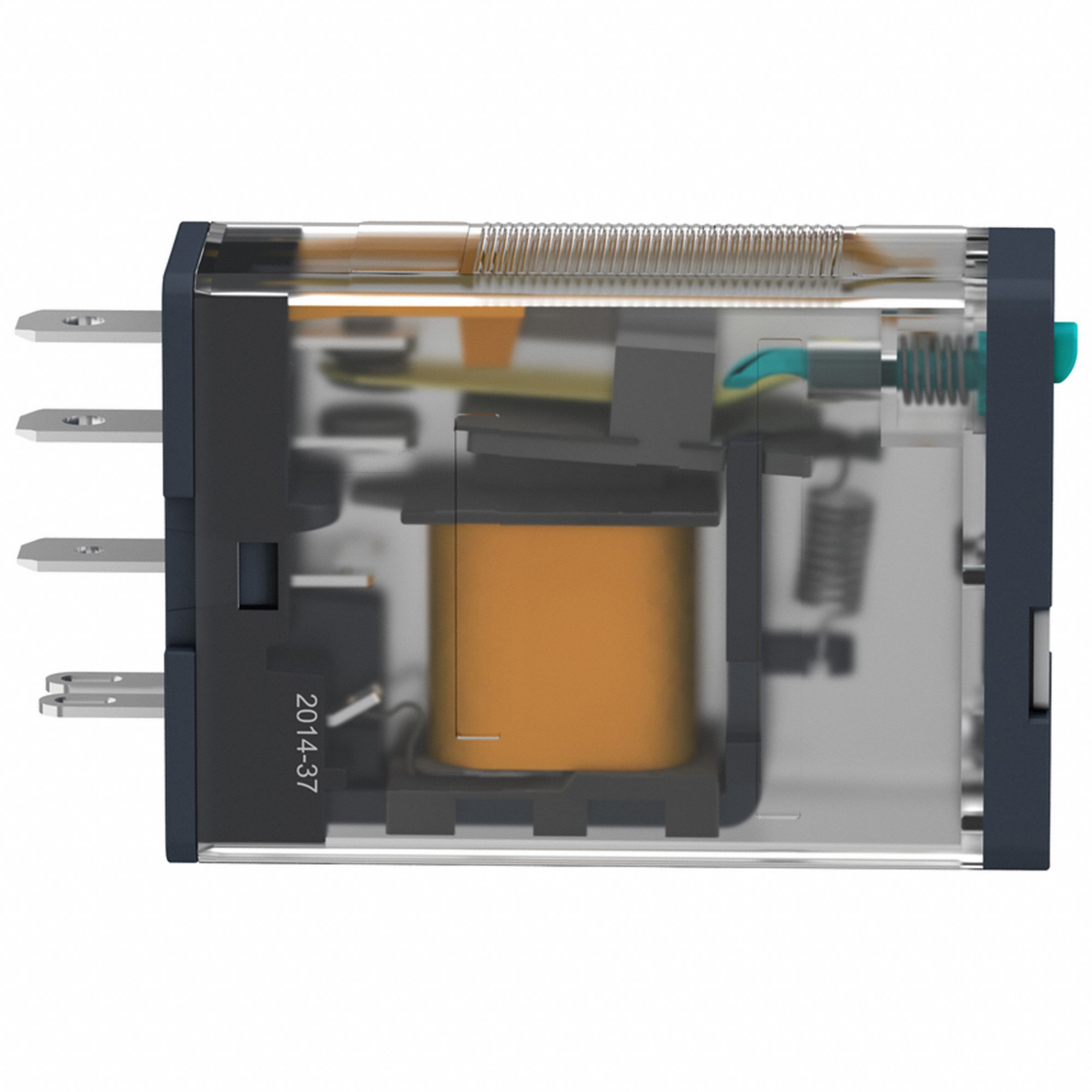

General Purpose Relay 24VDC 15A 5Pins
● In Stock

General Purpose Relay 24VDC 15A 5Pins

General Purpose Relay Base Shape Square Coil Voltage 24V DC Contact Form SPDT Current Rating 15 A Electrical Connection Quick-Connect Flat Pin Width 0.19 in Number of Pins 5 Pin Shape Flat Sealing Enclosed Status Indicator LED Indicator Mechanical Flag Contact Rating (AC) 15 A @ 250V Contact Rating (DC) 15 A @ 28V Horsepower @ 120V AC Not Rated Horsepower @ 240V AC Not Rated Mounting Style Plug-In Push-To-Test Method Lockable Body Depth 1.58 in Body Height 1.06 in

Hubzone SKU 1XZN8
Manufacturer SCHNEIDER
Manufacturer Part Number RPM12BD
UNSPSC Code
39121514 ⓘ
NAICS Code
N/A ⓘ
Unit of Measure EA
Availability ● In Stock
Lead Time Ships in 1–2 business days
Status ● Active

Your Price

$0.00/ PR

Contract Pricing

Product Overview

General Purpose Relay Base Shape Square Coil Voltage 24V DC Contact Form SPDT Current Rating 15 A Electrical Connection Quick-Connect Flat Pin Width 0.19 in Number of Pins 5 Pin Shape Flat Sealing Enclosed Status Indicator LED Indicator Mechanical Flag Contact Rating (AC) 15 A @ 250V Contact Rating (DC) 15 A @ 28V Horsepower @ 120V AC Not Rated Horsepower @ 240V AC Not Rated Mounting Style Plug-In Push-To-Test Method Lockable Body Depth 1.58 in Body Height 1.06 in

Full Specifications

Procurement Details

UNSPSC Code 39121514
NAICS Code N/A

Documents
