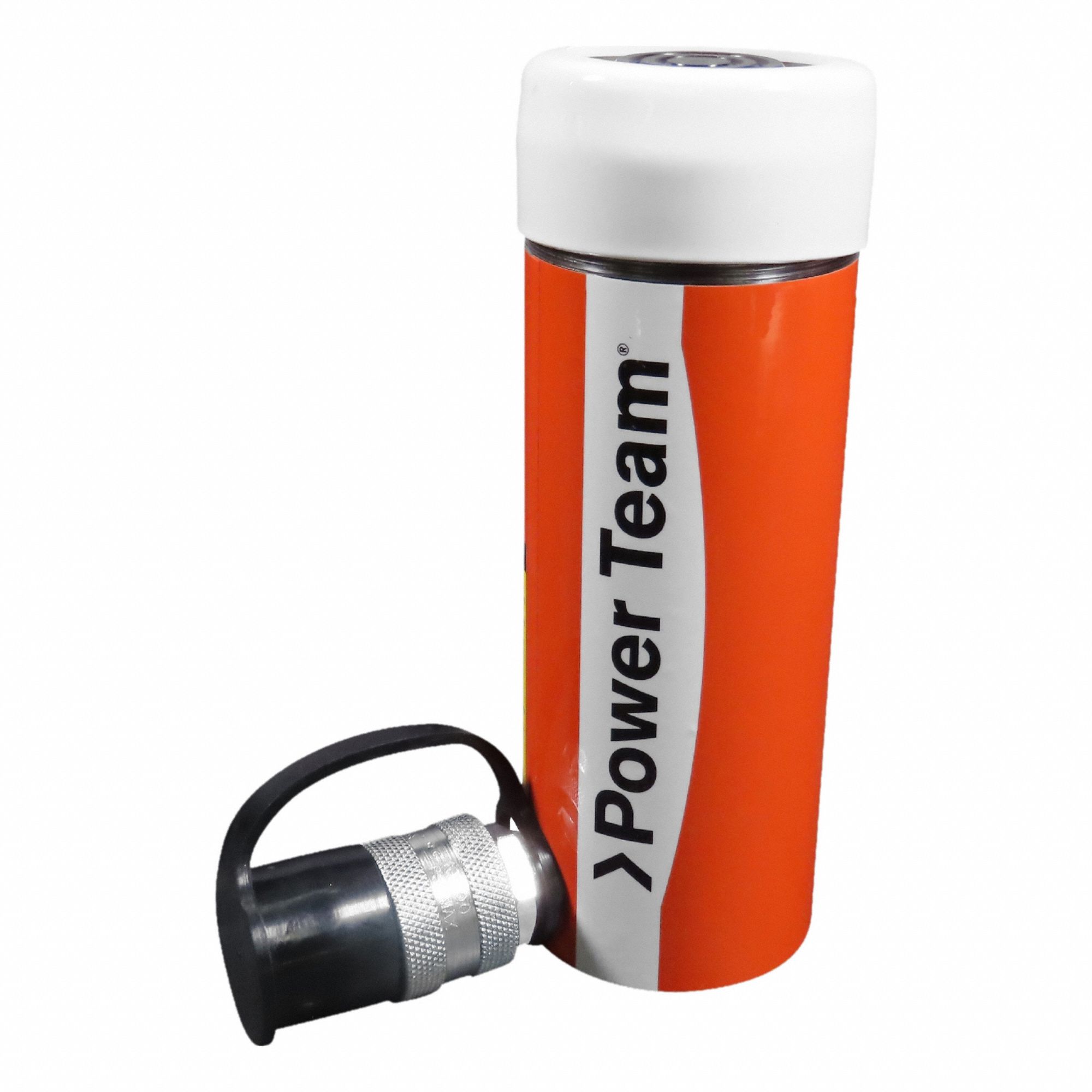

Standard Hydraulic Rams Steel 3.26 lb
● In Stock

Standard Hydraulic Rams Steel 3.26 lb

Standard Hydraulic Rams Single Acting High Quality Rugged Steel Nominal Capacity 5 ton Stroke Length 3 1/4 in Nominal Stroke Length 3 in Effective Push Area 0.994 sq in Max Pressure 10 061 psi Oil Capacity Push 3.2 cu in Retracted Height 6.5 in Extended Height 9.75 in Outside Dia 1.5 in Plunger Dia 1 in Collar Thread Size 1 1/2 In.-16 Base Bolt Circle Dia 1 in Base Mounting Thread Size 1/4 In.-20 Center Hole Dia Not Applicable Weight 3.26 lb Bore Dia 1.13 in

Hubzone SKU 411ZR2
Manufacturer POWER TEAM
Manufacturer Part Number C53C
UNSPSC Code
99999 ⓘ
NAICS Code
N/A ⓘ
Unit of Measure EA
Availability ● In Stock
Lead Time Ships in 1–2 business days
Status ● Active

Your Price

$0.00/ PR

Contract Pricing

Product Overview

Standard Hydraulic Rams Single Acting High Quality Rugged Steel Nominal Capacity 5 ton Stroke Length 3 1/4 in Nominal Stroke Length 3 in Effective Push Area 0.994 sq in Max Pressure 10 061 psi Oil Capacity Push 3.2 cu in Retracted Height 6.5 in Extended Height 9.75 in Outside Dia 1.5 in Plunger Dia 1 in Collar Thread Size 1 1/2 In.-16 Base Bolt Circle Dia 1 in Base Mounting Thread Size 1/4 In.-20 Center Hole Dia Not Applicable Weight 3.26 lb Bore Dia 1.13 in

Full Specifications

Procurement Details

UNSPSC Code 99999
NAICS Code N/A

Documents
